How deep can a pushback lane go?

Two to six pallets deep is the practical range. Lanes beyond four deep only pay off if you consistently hold that many pallets per SKU - we size lane depth from your inventory profile, not by maxing out the rail.

How does push back racking compare to drive-in rack?

Both store deep from one face. With pushback the forklift stays in the aisle and gravity does the work, which is faster and gentler on the structure. Drive-in goes deeper and costs less per position, but the driver has to enter the lane to place and pull loads.

Will my drivers need retraining?

Barely any. Loading is closer to selective racking than to drive-in - square up in the aisle, set the pallet, let the cart take it. Most crews are comfortable within a shift.

What load capacities are available?

Cart and rail assemblies are commonly rated 2,500 to 4,000 lb per pallet, with heavier configurations available. We specify to your heaviest pallet with margin and hand over ratings for the finished lane.

Can a Sanger pushback rack project be phased around fruit packing operations near State Route 180?

Sanger's packing and agricultural operations connect east-side production with Fresno through Academy Avenue and Route 180. Seasonal pallets, packaging materials, and dispatch lanes need to coexist without turning the rack area into overflow floor storage. Agree the work zones, inventory transfers, access windows, and handover sequence before starting. Phasing is evaluated against your current storage needs and site conditions; uninterrupted operation and a particular completion date cannot be assumed until the scope and approvals are known.

Sanger, California

Pushback Rack in Sanger, CA

Matching packed-fruit pallets can fill Sanger aisles while staff prepare outbound loads. Pushback adds lane depth without truck travel inside the structure, provided the batch rotation method supports LIFO within each lane. Sanger's packing and agricultural operations connect east-side production with Fresno through Academy Avenue and Route 180. Seasonal pallets, packaging materials, and dispatch lanes need to coexist without turning the rack area into overflow floor storage. Pushback Rack in Sanger, CA starts with reserve density from a single aisle without the forklift entering a storage lane. We review matching pallets per SKU, cart compatibility, pallet overhang, lane depth, and load weight before recommending a configuration.

You get a free design consultation, a CAD plan, and an itemized quote for your actual building, not an assumed warehouse footprint. Pushback is last in, first out within each lane. Date-sensitive stock needs an explicit rotation strategy or a different system. Call (559) 620-5206 to discuss the constraint that is holding up your next receipt or order.

(559) 620-5206

Why Sanger Warehouses Work With Us

Sanger's packing and agricultural operations connect east-side production with Fresno through Academy Avenue and Route 180. Seasonal pallets, packaging materials, and dispatch lanes need to coexist without turning the rack area into overflow floor storage. Work backward from the pack-line handoff and the outbound truck window. Check the loading route at the actual Sanger building, and make room for batch changes rather than treating every available square foot as permanent storage.

For pushback rack, that means checking matching pallets per SKU, cart compatibility, pallet overhang, lane depth, and load weight against the way your Sanger team actually works. Pushback is last in, first out within each lane. Date-sensitive stock needs an explicit rotation strategy or a different system. We compare the storage arrangement with the receiving, production, and dispatch space it leaves available, so a higher count does not come at the expense of daily access.

Fresno Pallet Racks connects your project with Warehouse Equipment & Supplies Co.. You can discuss the Sanger plan with one contact, ask for a revised layout, and see the scope in writing before ordering. A free design consultation should explain both the benefit and the tradeoff of pushback rack; it should not pressure you into a system that mismatches your inventory. Installation timing and any later additions are planned around the actual site and approved configuration.

Free warehouse consultation

CAD layout with position counts

Installation by trusted installation partners

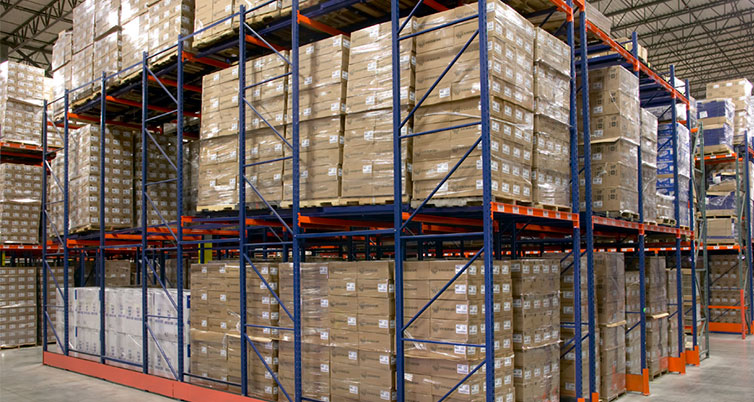

High-density pushback rack lanes loaded with pallets

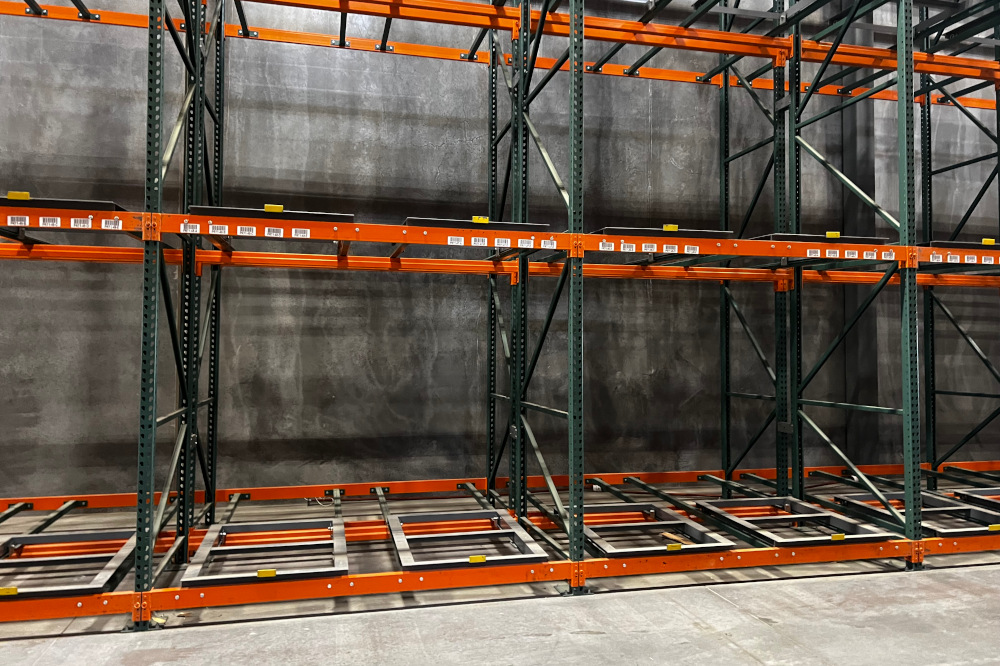

Pushback pallet racking showing cart rails and load beams

Operations We Rack Around Here

Local industrial and transport corridors include Academy Avenue, State Route 180, Sanger Depot area.

Fruit packing

Agricultural processing

Manufacturing

How Pushback Rack Works

Two to six pallets deep from one aisle, without giving up much reach.

Loading from the aisle

The driver sets the first pallet on the front cart. Each pallet added after that pushes the cart train deeper into the lane, so one aisle handles the whole depth.

Carts nested on rails

Steel carts with nylon or steel wheels ride inclined rails, each nesting under the one ahead of it - that nesting is what makes multi-deep storage possible from a single face.

Retrieval by gravity

Pull the front pallet and the next cart rolls forward on the incline to the pick face. No driving into the lane, no repositioning pallets by hand.

Last in, first out

Each lane runs LIFO. That suits fast-turning product and any operation managing rotation by lane rather than by individual pallet date.

What a Pushback Rack Project Includes

Your Sanger pushback rack project starts with a practical inventory and building review. We collect matching pallets per SKU, cart compatibility, pallet overhang, lane depth, and load weight, usable ceiling height, column locations, door positions, and the current traffic pattern. Work backward from the pack-line handoff and the outbound truck window. Check the loading route at the actual Sanger building, and make room for batch changes rather than treating every available square foot as permanent storage. Photos and an existing drawing help start the conversation; dimensions and conditions must be confirmed before an installation plan is finalized.

The CAD layout shows the storage arrangement, operating aisles, level or lane elevations, and the usable position count. We review reserve density from a single aisle without the forklift entering a storage lane against an alternative where a comparison helps. The itemized quote identifies the system components, specified capacities, protection, and installation scope. Our team handles the permit side for you.

Delivery and work zones are planned around the access at your Academy Avenue or State Route 180 building. Installation follows the approved configuration, with frames or bases anchored as specified, connections checked, and alignment verified. Systems with moving carts, rollers, or wheel beds are checked with representative loads. Pushback is last in, first out within each lane. Date-sensitive stock needs an explicit rotation strategy or a different system. Your team receives the agreed configuration and capacity information, a layout to use for later changes, and a clear contact for follow-up questions. Do not change elevations or loads without checking whether the ratings and approvals still apply.

Two to six pallets of the same SKU stacked in one lane

Cold storage or leased space where rent per square foot is steep

Operations trimming aisle count to add positions

Beverage, packaging, and consumer goods runs

Buildings with clear height to spare but limited floor
